Dual-Band J-Pole Project
A dual-band J-Pole vertical antenna has been set up to permit working FM stations on 6-meters and 10-meters.
The J-Pole provides a simple vertically polarized antenna for these frequencies. The design is inspired from
the many VHF/UHF dual-band J-Pole antennas that have been made over the years.
The antenna was initially designed using NEC4win95 antenna design software,
but subsequently was taken from the excellent J-Pole calculator at DX-Zone.
The calculator is for 1/2-inch copper tubing, but I substituted 1.25-inch
schedule-40 aluminum tubing (1.66-inch O.D.). The tubing used in the
"J" section are 1.0-inch aluminum tubing.
The antenna tuned almost exactly to the dimensions given in the calculator.
Another variance to the design was the use of a section of Rohn-25 tower
that had suffered frost damage making it unusafe to put up in a tower.
I buried the 8-foot section of tower 2-feet into the ground and used tower
clamps to attach the main J-pole mast. I made the main mast 297-inches
long (24-ft, 9-in). This was intentionally longer than the 293-inch length
that the calculator shows for 29-MHz, because I wanted some allowance for
adjustment (Even though NEC4win95 showed little effect from the 16-inch
triangular cross-section of the tower).
Construction used 4x9.5x0.1 inch aluminum plates to attach the "J" tube to
the 6m J-Pole. 1/4-20 x2.5 stainless hardware is used (four bolts).
4x12x0.1 inch plates were used for the 10m "J" tube. Complete dimensions
are shown in the drawing. Previously, it was mentioned that two galvanized
tower-clamps were used to support the main mast at about 3-inches above
ground and at the top of the tower-section. No attempt was made to insulate
these clamps so the tower becomes part of the 29-MHz antenna. The 6m J-Pole
is pretty much isolated from its effect being attached to a point on the
mast above the tower. The main mast is grounded thru the tower section.
I fed each J-Pole with RG-8 coax to an SO-239 panel receptacle mounted with
two 4-40 machine screws to a right-angle braket that is attached with sheet
metal screws into the "J" tube at the appropriate position. No. 12 solid
copper wire with insulation was used for the feed from the center conductor
to the same position on the main mast.

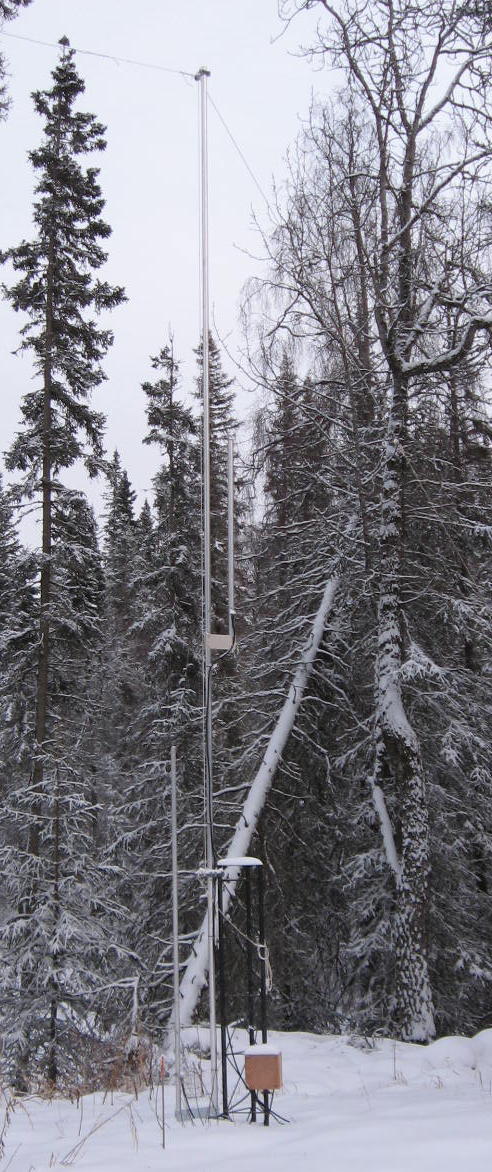

- Base of the dual-band J-Pole showing tower support and plywood coax relay box
- Six meter section of J-Pole
- Six meter feed detail
- Another view of the 6m feed point
- Ten meter feed showing SO-239 connector held with hose clamps for easy tuning adjustment
The coax was routed down the main mast to a coax relay so that a single coax
feedline could be used with the antenna. A small 12-vdc relay switches
115-vac to the coax relay. An extension cord provides 115-vac to the relay
box and a run of No. 16 speaker wire provides 12-volt control from the
"radio shack".
The 6m J-pole was tuned first:
| 6M J-Pole Tuning |
| Freq. |
Fwd Pwr |
Ref Pwr |
SWR |
| 50.125 |
50 |
5.5 |
2.0 |
| 50.300 |
50 |
5.0 |
1.75 |
| 51.150 |
50 |
3.0 |
1.65 |
| 52.500 |
50 |
1.5 |
1.4 |
| 53.000 |
50 |
1.9 |
1.5 |
The attachment position was at 5.0 inches from the base of the "J" vs. a calculated 5.5 inches. The antenna was designed for
51.5 MHz and ended up resonant at 52.5 MHz.
Theoretical development of the J-pole and other end-fed half-wave antennas is discussed in great detail at the DX-ZONE
website. Since my J-pole was installed right at freeze-up beginning the Alaska winter, I did not explore the effects
of adding a ground-plane. The main RG-8 feedline was extra long so that RF chokes could be made at the base of the
antenna at connection to the coax relay. My wife reminded me I was talking thru her computer speakers when I was on the
6m yagi, but no stray RF was detected in her speakers when I tranmitted on the 6m J-Pole with 100w!
On air tests on 6m-FM simplex with hams out to about 40-miles indicate the antenna "talks" very well. The final test was
accessing a repeater on 51.15/51.65 MHz in Anchorage over 70-miles away! Next is seeing how well 10 meters talks.
A quick test of the 10m J-Pole shows:
| 10M J-Pole Tuning |
| Freq. |
Fwd Pwr |
SWR |
| 28.400 |
100 |
1.6 |
| 28.885 |
100 |
1.5 |
| 29.000 |
100 |
1.6 |
